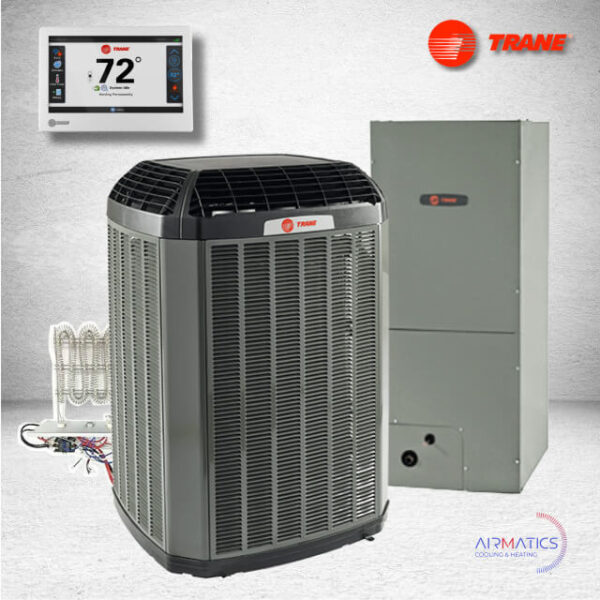

Name: TRANE 4 Ton Heat-Pump / Air Handler 20 SEER2
SKU: 40TWV0X20HPTEMC
Availability: InStock

TRANE 4 Ton Heat-Pump / Air Handler 20 SEER2

$17,483.00 Complete system with installation (TAX included)

Pay after installation

–

This matched Trane system delivers exceptional energy efficiency and comfort through variable-speed cooling and heating. The variable-speed blower ensures precise temperature control and whisper-quiet operation. Communicating technology allows seamless interaction between system components, optimizing performance, efficiency, and indoor comfort. Certificate AHRI 216440336, Actual SEER2- 20.6

SKU: 40TWV0X20HPTEMC

Category: Central HVAC

Description

Heat-Pump TRANE 5TWV0X48A1000*

The 20 TruComfort™ Variable Speed Heat Pump with WeatherGuard™ connects to the Link™ Communicating System Controller and Smart Thermostat.

Your heat pump system will automatically charge, configure, and calibrate for optimal performance year-round.

SEER2 rating up to 22.4 and an HSPF2 of up to 10.5
70% heating capacity ratio at 5° F and 100% heating capacity down to 32° F
Durable and reliable build quality

Air Handler TRANE 5TEMCD07AV51

Trane Hyperion TAMX Series represents the pinnacle of Trane’s air handler offerings, featuring innovative technology for supreme efficiency and comfort. It is constructed with double-walled insulation to reduce noise and air leakage.

Ultra-efficient variable-speed technology with unmatched comfort control.
Unmatched noise reduction, exceptional indoor air quality with multi-stage filtration and purification, smart home integration capabilities.
Provides the ultimate in home comfort, efficiency, and control.
Engineered for superior performance and unparalleled reliability.

Electric Heater TRANE BAYHTR1517BRK

Heat Strip Electric heater 17 KW

Thermostat TLINK360A2VVU

Offers a range of features that make it a sophisticated and user-friendly choice:

System Controller
Enhanced Dehumidification
large 7-inch touchscreen, and a built-in bridge for Z-Wave Devices

Warranty on equipment/works – according to manufacturer's/contractor's term and conditions.

Trane Extended Limited Warranty:

10 years on coil and functional parts
12 years on compressor

Warranty on installation works:

Extended Labor Warranty – 5 years (Maintenance agreement required)

Professional HVAC Installation Service

Experience a seamless, worry-free installation performed by certified professionals who follow all mechanical city codes and industry best practices. We handle every detail from start to finish — so you can enjoy reliable comfort and peace of mind.

Our Installation Includes:

Safe Equipment Removal & Cleanup: We remove and recycle your old system responsibly, leaving your space spotless when the job is done.
Floor Protection: Drop cloths are used to protect your flooring throughout the installation process.
Eco-Friendly Refrigerant Recovery: All refrigerant is recovered and recycled in full compliance with the Clean Air Act.
Precision System Installation: New heating or cooling units are expertly installed for long-lasting performance.
High-Quality Insulation: Exterior refrigerant line insulation is upgraded with durable, weather-resistant, exterior-grade materials.
Copper Line Cleaning & Flushing: Existing copper refrigerant lines are thoroughly flushed and cleaned to remove oil, debris, and contaminants — ensuring a clean system environment and preventing damage to the new compressor.
System Protection & Reliability: Copper lines are vacuumed, and a filter drier is added to protect against moisture and acid formation.
Seamless Connections: Integration with your existing ductwork, electrical, gas, and flue systems for smooth, efficient operation.
Smart Thermostat Wiring: Accurate wiring and connection ensure full thermostat functionality and control.
Condensate Drain Setup: Condensate line connected to existing drainage with a proper P-trap and cleaning access for easy maintenance.
Airtight Finishing: All seams between equipment, platforms, and ductwork are sealed to eliminate air leaks and maximize efficiency.
Performance Tuning: Refrigerant charge and blower speed are adjusted for optimal comfort, performance, and energy efficiency.

Indoor Units Installation (Attic, Closet, or Garage)

Our team provides a full, code-compliant setup of your indoor system components, including all essential parts and upgrades for optimal performance:

Metal Insulated Supply & Return Plenums: Custom-fabricated plenums with high-quality insulation to ensure efficient airflow and noise reduction. (May not required)
High-Quality Collars with Dampers: Securely installed collars and adjustable dampers for precise air balancing and improved comfort control.
Filter Case Installation: A properly sealed filter case designed for easy filter replacement and enhanced air quality. (May not required)
New Emergency Drain Pan: A corrosion-resistant secondary drain pan installed to prevent water damage from condensate overflow. (May not required)
Float / Overflow Safety Switch: A safety device installed to automatically shut off the system in case of condensate overflow, protecting your home from leaks.
Rail Hanger System: Sturdy support rails to properly suspend and stabilize the air handler or furnace unit in attic or garage installations. (only for Horizontal Installation)
New Clear PVC P-Trap with Cleaning Tool: Transparent PVC P-trap with a built-in cleaning port for easy maintenance and clear visual inspection.
Condensate Pipe Blowing Valve: Integrated valve for easy system flushing and routine drain line maintenance.

Outdoor Unit Installation (Ground)

Balcony or Roof Installation can be requiered a Crane service (Additional Cost)

The outdoor section of your system is set up with precision to ensure durability, performance, and a professional finish:

New Concrete Equipment Pad: A solid, level base to support the outdoor condenser or heat pump, reducing vibration and extending equipment life.
New Electrical Disconnect Box: Installed adjacent to the outdoor unit for safe and easy power shut-off during service or maintenance.
New Electrical Whip: Flexible, weather-resistant electrical conduit connecting the disconnect to the outdoor unit for a clean, code-compliant power connection.
New Insulation for Outdoor Suction Line: outdoor suction line to prevent energy loss, condensation, and UV damage — ensuring maximum efficiency and durability.

Heat source: Electric

HP / AC: Heat-Pump

AC/HP model: 5TWV0X48A1000*

Coil/El.Heater: BAYHTR1517BRK

Thermostat: TLINK360A2VVU

GF/AHU: 5TEMCD07AV51

AHU type: Upflow/Horizontal

Tonnage: 3.5, 4

Brand: TRANE

Indoor unit type: Air Handler

Condenser unit stages: variable

SEER2: 20 SEER
