Description
Our quietest and most energy efficient heat pump delivers maximum comfort while keeping noise levels low. Certificate AHRI 207690019, Actual SEER 19

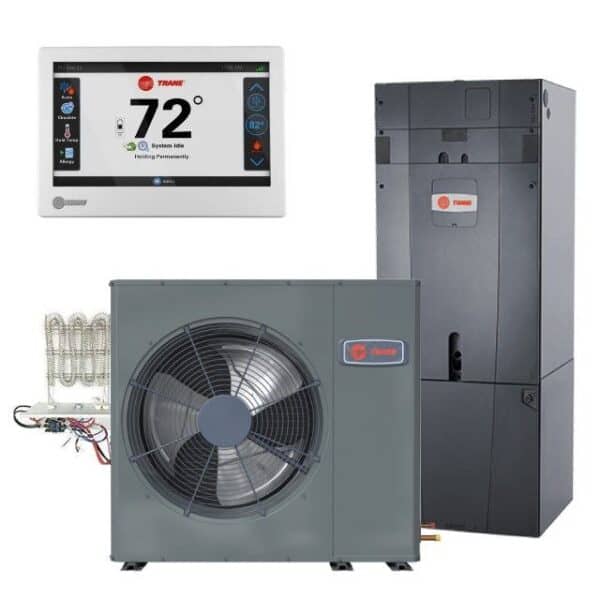

Heat-Pump TRANE 4TWL9060A1000* – Trane XV19: Designed for tight spaces without compromising on performance, this model provides excellent energy efficiency and operates very quietly, making it ideal for urban environments.
– Compact design suitable for small spaces
– Quiet operation with efficient performance
– SEER2 rating around 19 for great energy savings
Air Handler TRANE TAMXA0C60V51D* – Trane Hyperion TAMX Series represents the pinnacle of Trane’s air handler offerings, featuring innovative technology for supreme efficiency and comfort. It is constructed with double-walled insulation to reduce noise and air leakage.
– Ultra-efficient variable-speed technology with unmatched comfort control.
– Unmatched noise reduction, exceptional indoor air quality with multi-stage filtration and purification, smart home integration capabilities.
– Provides the ultimate in home comfort, efficiency, and control.
– Engineered for superior performance and unparalleled reliability.
Electric Heater TRANE BAYEABC20BK1
Heat Strip Electric heater 17 KW
Thermostat TLINK360A2VVU- offers a range of features that make it a sophisticated and user-friendly choice:
– System Controller
– Enhanced Dehumidification
– large 7-inch touchscreen, and a built-in bridge for Z-Wave Devices
Warranty on equipment/works – according to manufacturer’s/contractor’s term and conditions.
Trane Extended Limited Warranty:
– 10 years on coil and functional parts
– 12 years on compressor
Warranty on installation works – 12 month
Extended Labor Warranty – 5 years (Maintenance agreement required)
All necessary materials that must be replaced to keep your new AC system running efficiently and safety and to pass a city inspection
Service works:
– City Permit
Professional installation works in accordance with mechanical city code:
– Remove and recycle existing equipment, cleanup site when finished
– Customer flooring protected with drop clothes
– Existing refrigerant recovered and recycled in accordance with the clean air act
– Installation of new system units
– Exterior section of refrigerant line insulation replaced with exterior-grade pipe insulation
– Copper refrigerant lines vacuumed and filter drier installed to prevent moisture damage
– Connecting to existing ductwork
– all necessary connection to existing communication lines (electricity, gas and flue pipe)
– Thermostat wiring connection
– Condensate line connection to existing drainage with proper P-trap and cleaning access
– All seams between equipment, platform and ductwork sealed airtight
– Adjust refrigerant charge and blower speed to provide optimal performance
Heat source: Electric
HP / AC: Heat-Pump
AHU type: Upflow/Horizontal
Tonnage: 5
Brand: TRANE
Condenser unit stages: variable
Indoor unit type: Air Handler
SEER2: 19 SEER
Coil/El.Heater: BAYEABC20BK1
Thermostat: TLINK360A2VVU
GF/AHU: TAMXA0C60V51D*
Condenser unit location: Ground
Flow direction location: Upflow
