Description

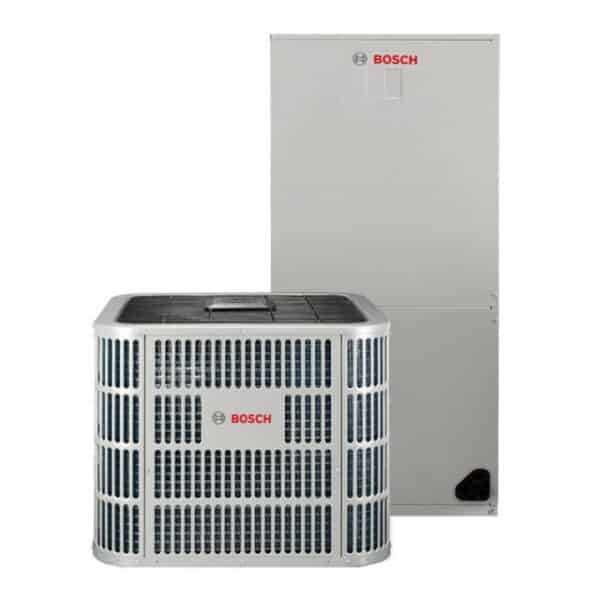

Qualify for maximum energy rebates and save the most on energy costs with our highest efficiency offering. This system combines our top tier BOVA20 outdoor unit with our exceptional BVA20 two stage constant torque ECM style air handler. Certificate AHRI 202868497, Actual SEER2 -18
Heat-Pump BOSCH BOVA-60HDN1-M20G – BOVA20 series Inverter Heat-Pump:
– The high-efficiency variable capacity inverter compressor in the condensers can adjust to speeds ranging from 26% to 130% to perfectly cool and heat your home using minimal energy for maximum comfort
– 10-speed ECM outdoor motor for quiet and efficient operation
– The air coil design provides exceptional heat transfer and low air-resistance for high-efficiency operation that can help lower your energy costs
– The direct-drive fan blades provide vortex suppression to reduce sound of airflow exiting the condensing section
– The condensing units come standard with an electronic expansion valve (EEV) to ensure proper refrigerant flow during all conditions
Air Handler BOSCH BVA-60WN1-M20 – BVA20 series variable speed Air Hundler
– Two stage constant torque ECM style air handler
– All-Aluminum Coil – With excellent heat transfer, efficiency, and humidity removal
– Integrated Drain Pan – Made from corrosion-resistant composite material
– Painted galvanized steel cabinet is salt spray tested for improved durability and corrosion-resistance
Electric Heater BOSCH EHK-15B
Heat Strip Electric heater 15 KW
Thermostat is not included. Can be used existing one if it meets to a new system requirements.
Warranty on equipment/works – according to manufacturer’s/contractor’s term and conditions.
BOSCH Extended equipment Warranty:
– 10 years on coil and functional parts
– 10 years on compressor
Warranty on installation works – 12 month
Extended Labor Warranty – 5 years (Maintenance agreement required)
All necessary materials that must be replaced to keep your new AC system running efficiently and safety and to pass a city inspection
Service works:
– City Permit
Professional installation works in accordance with mechanical city code:
– Remove and recycle existing equipment, cleanup site when finished
– Customer flooring protected with drop clothes
– Existing refrigerant recovered and recycled in accordance with the clean air act
– Installation of new system units
– Exterior section of refrigerant line insulation replaced with exterior-grade pipe insulation
– Copper refrigerant lines vacuumed and filter drier installed to prevent moisture damage
– Connecting to existing ductwork
– all necessary connection to existing communication lines (electricity, gas and flue pipe)
– Thermostat wiring connection
– Condensate line connection to existing drainage with proper P-trap and cleaning access
– All seams between equipment, platform and ductwork sealed airtight
– Adjust refrigerant charge and blower speed to provide optimal performance
Heat source: Electric
HP / AC: Heat-Pump
AHU type: Upflow/Horizontal
Tonnage: 5
Brand: BOSCH
Condenser unit stages: variable
Indoor unit type: Air Handler
SEER2: 20 SEER
Coil/El.Heater: EHK-15B
GF/AHU: BVA-60WN1-M20
Condenser unit location: Ground
Flow direction location: Upflow
